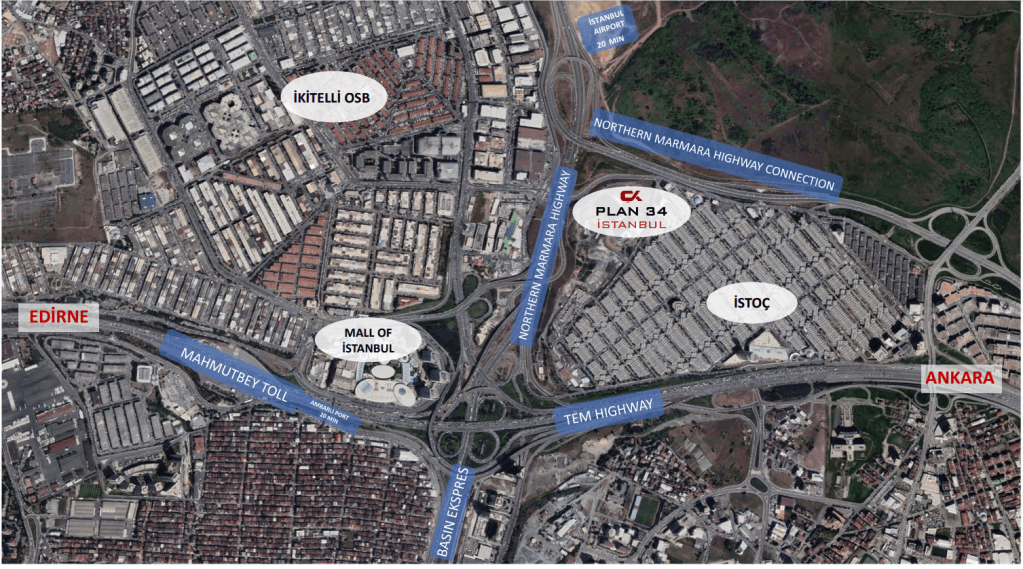

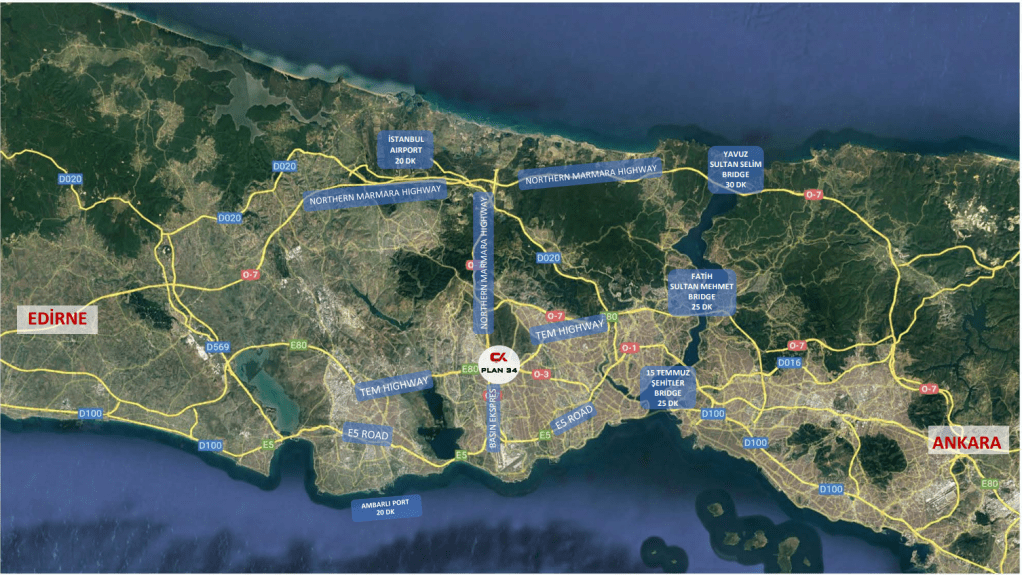

Location

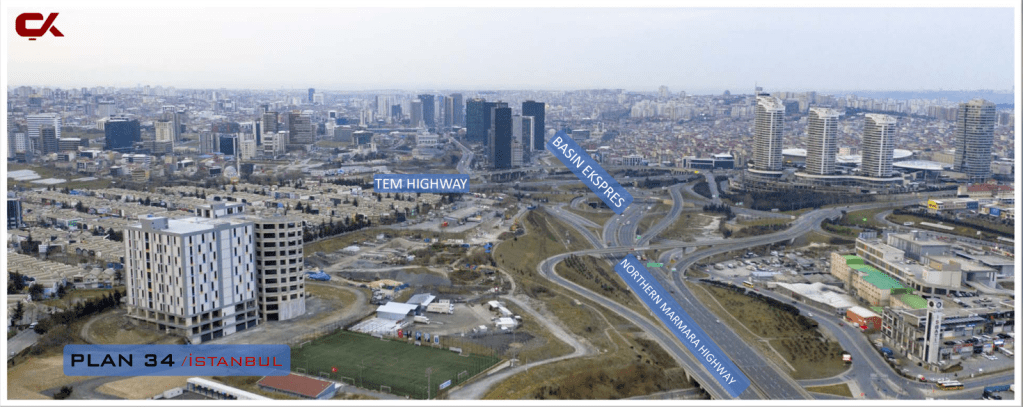

PLAN 34 is a project built as a multi-storey industrial warehouse. The project is adjacent to İstoç and
İkitelli OSB at the junction of the Northern Marmara Highway, TEM and Basın Ekspres main roads. The
project consists of 12 floors, and with the truck ramp in the building, truck transportation is possible to
reach every floor, aiming for maximum efficiency. PLAN 34 is an advantageous project in transportation
and shipments with its location and structural features.
Construction Phase

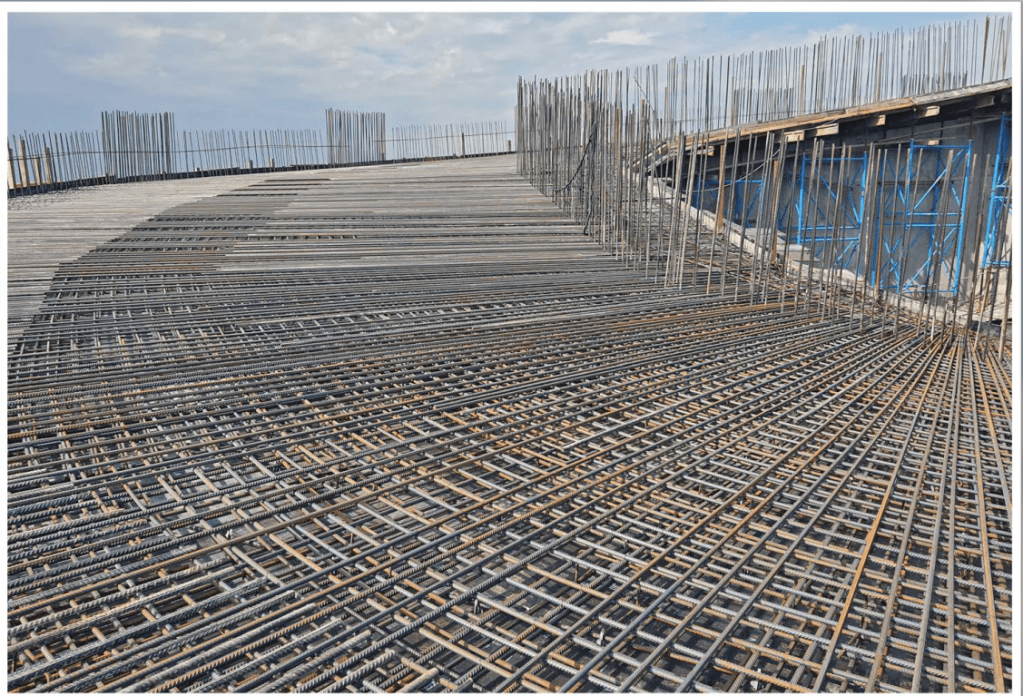

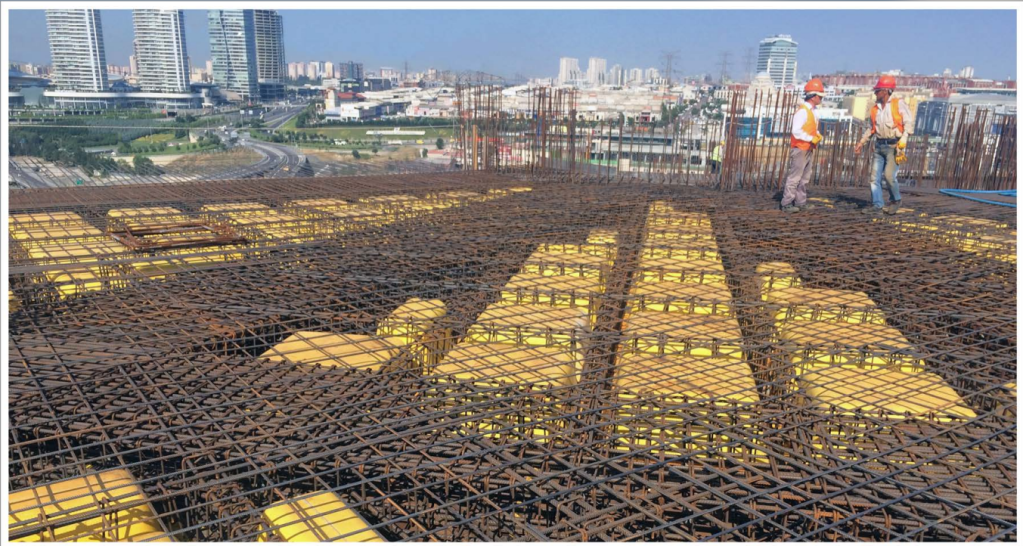

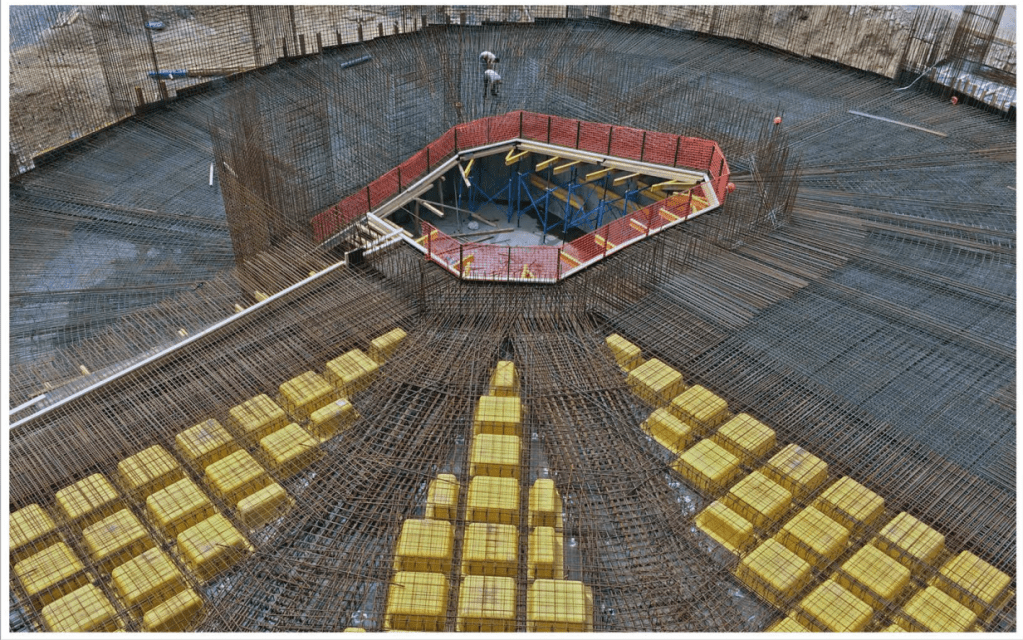

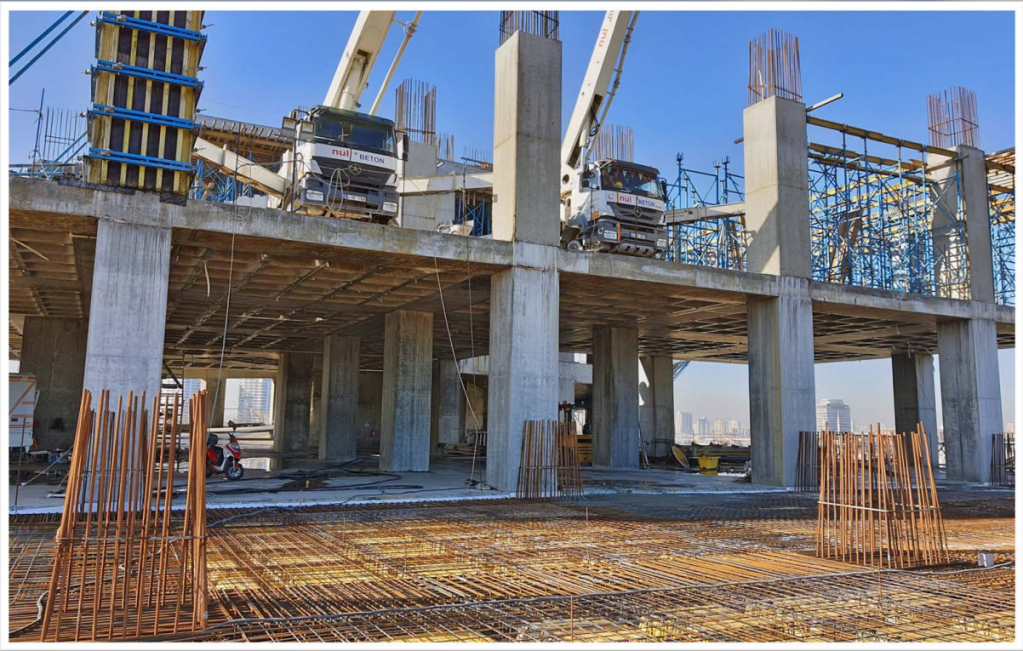

Plan 34 project has been constructed in accordance with earthquake regulations by using dense iron
reinforcement and TSE certified C40 class ready-mixed concrete.It is a safe structure built on rocky
ground with a raft foundation with thickness of 2 meters.

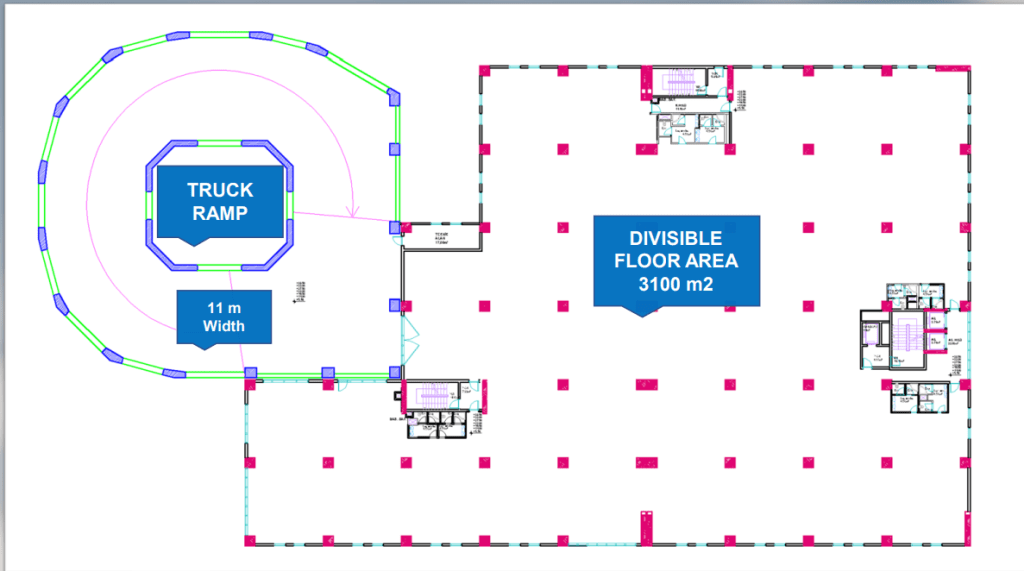

Floor Plan
The PLAN 34 project has leasable storage areas between 500 m2 and 35.000 m2. In addition to that also,
it has been designed as independent areas suitable for street-facing stores, banks, restaurants and
similar use. There are also street, ground and terrace parking lots.
Technical Specifications

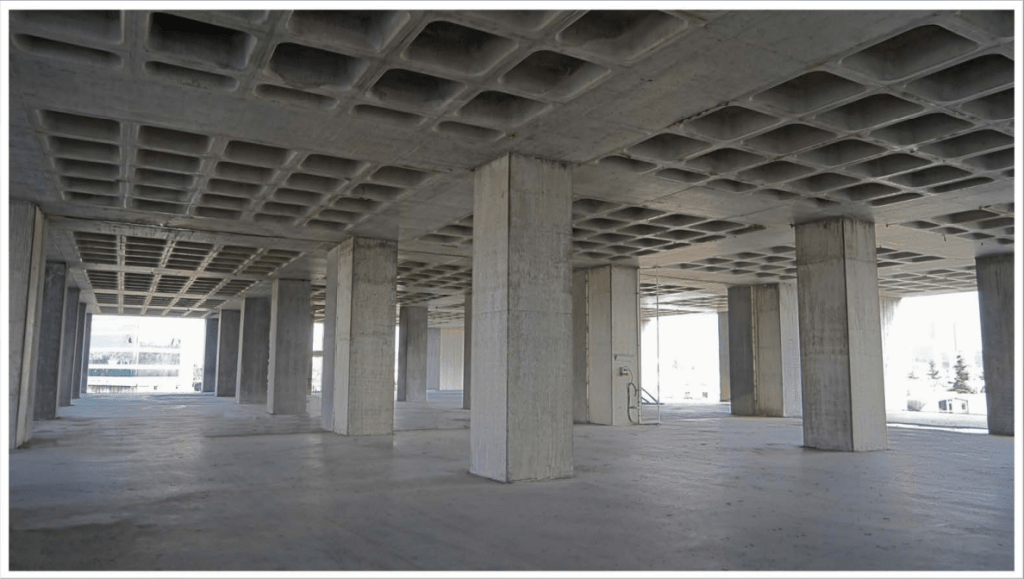

The PLAN 34 project consists of 120×120 cm columns in the supporting system, various reinforced concrete shears and
60 cm slab thickness in the cassette formwork system. Thanks to these attributes, The building has a high load carrying capacity. Load carrying capacity per m2 is 2.5 tons.
- Electrical supply
between floors with a
vertical busbar system. - Vertical busbar
system for common
area. - Busbar power 2500
A, 100 KW power per
floor.

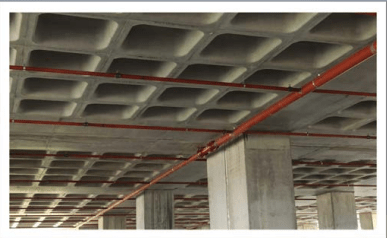

- Sprinkler water
extinguishing system
in accordance with
NFPA norm - Addressable fire
alarm and detection
system.

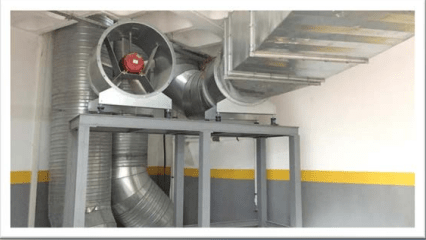

- Smoke evacuationsystem in closed parkinglots.
- Stair pressurization system
- Generator powered emergency escape elevator
Distinctive Features
- Leasable storage areas between 500 m2 and 35.000 m2.
- Truck access to every corner of the building on every floor
thanks to the 11-meter wide truck ramp. - Each floor has a rentable area of 3,100 m2, totaling 11 floors,
and in addition, there is a parking lot and shelter in the
basement floor. - 2.5-ton load capacity per square meter.
- Heavy steel reinforcement and C40 class ready-mixed
concrete with TSE certification. - 2-meter raft foundation thickness.
- 120×120 cm columns in the supporting system.
- 60 cm floor thickness in the cassette formwork system.
